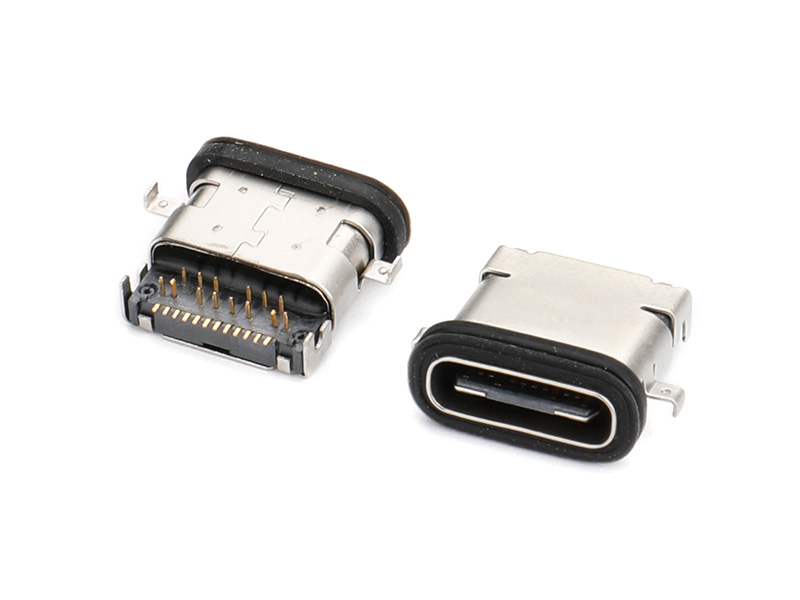

TYPE-C-TYPE-C母座 16PIN 沉板1,6 L=6,5
电气参数
Electrical
Voltage : 20V AC
Current : 5A (Max.)
Contact Resistance : 40mΩ max. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ min.
Operating Temp : -40℃ ~ +85℃
Voltage : 20V AC
Current : 5A (Max.)
Contact Resistance : 40mΩ max. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ min.
Operating Temp : -40℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: Waterproof
Interface: R/A
PCB Mounting: SMT+DIP
Circuits:16P
Family: Waterproof
Interface: R/A
PCB Mounting: SMT+DIP
Circuits:16P
