HDMI SERIES
HDMI A TYPE
-

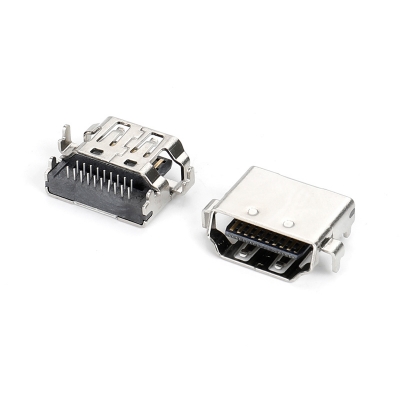

HDMI正向沉板铜壳镀镍窗口斜口两K脚两直脚，壳面模印，中心高度0.83 外壳总长12.05 端子间距1.5 半金雾锡1u
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-

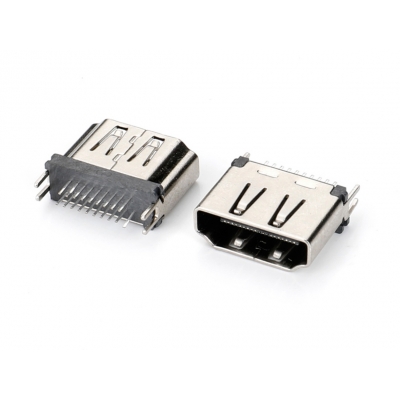

HDMI夹板式，外壳镀镍
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-

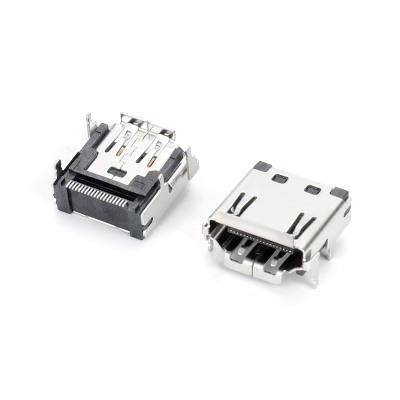

HDMI加长款B款不锈钢壳镀镍 四直脚四反弹片 翻边高9.35 针长1.4 半金雾锡15u
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-
查看全部产品
HDMI D TYPE
-
MICRO HDMI DTYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
MICRO HDMI D TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
MICRO HDMI D SMT TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
查看全部产品
MINI HDMI
-

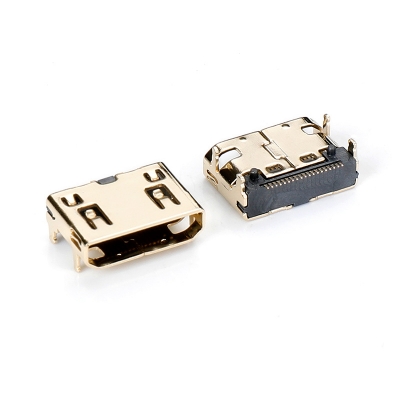

MINI HDMI
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-

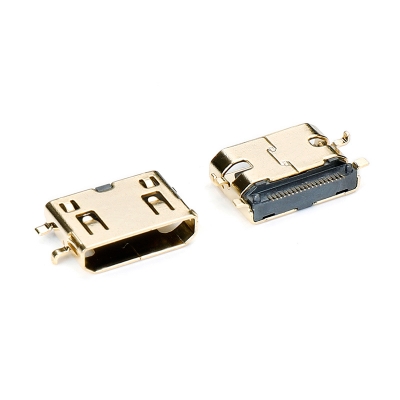

MINI HDMI TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-

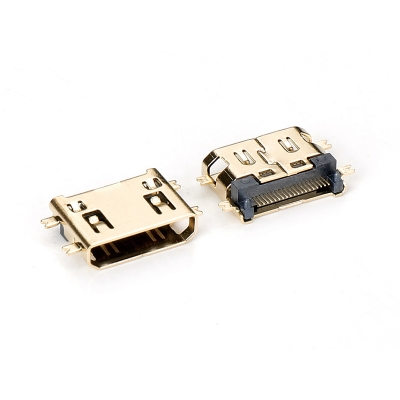

MINI HDMI SMT TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
查看全部产品
双层HDMI
-

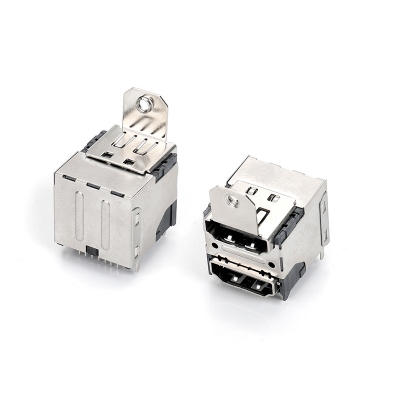

双层HDMI DIP三排 带定位柱,LCP黑胶半金GF 外壳不锈钢,有耳7.2mm无柱
ElectricalVoltage: 40V AC (Per Pin)Current: 0.5A (Per Pin)Contact Resistance: 30 mΩ MAX.30 mΩ MAX. after testDielectric Withstanding Voltage: 500V AC/rms (mated conn.)Insulation Resistance: 100 MΩ min. (mated conn.)Operating Temp.: -30℃ ~ +85℃ -

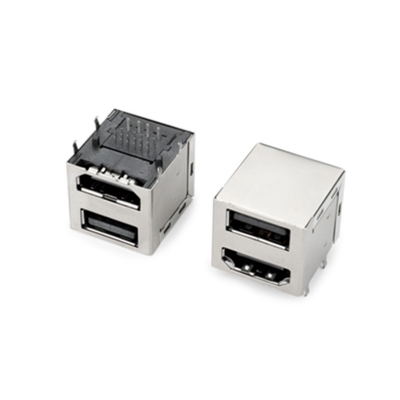

USB2.0AF+HDMI双层90度 插板式
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-
