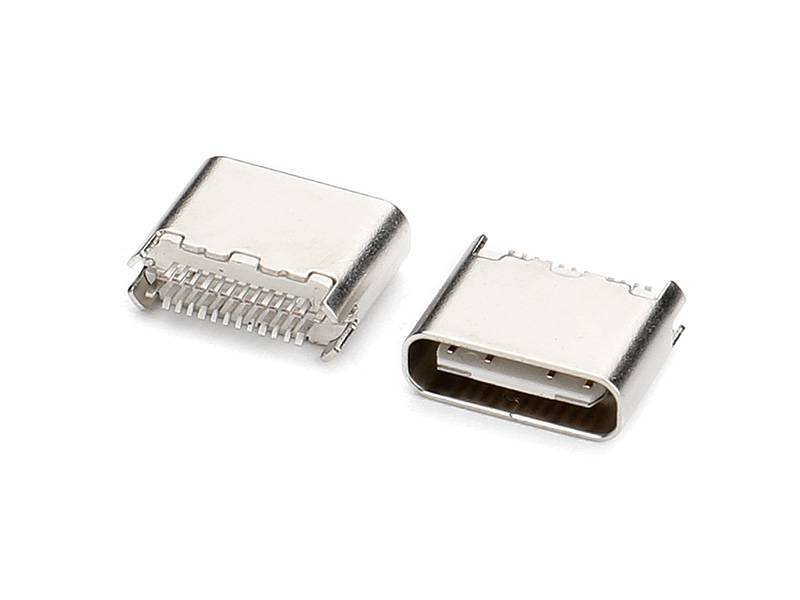

TYPE C USB 24P短体夹板式
电气参数
Electrical
Voltage : 20V AC
Current : 5A (Max.)
Contact Resistance : 40mΩ max. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ min.
Operating Temp : -40℃ ~ +85℃
Voltage : 20V AC
Current : 5A (Max.)
Contact Resistance : 40mΩ max. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ min.
Operating Temp : -40℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: Receptacle
Interface: Vertical
PCB Mounting: Dual SMT
Circuits: 24
High Speed Support: Thunderbolt 3.1(20Gbps)
Family: Receptacle
Interface: Vertical
PCB Mounting: Dual SMT
Circuits: 24
High Speed Support: Thunderbolt 3.1(20Gbps)
