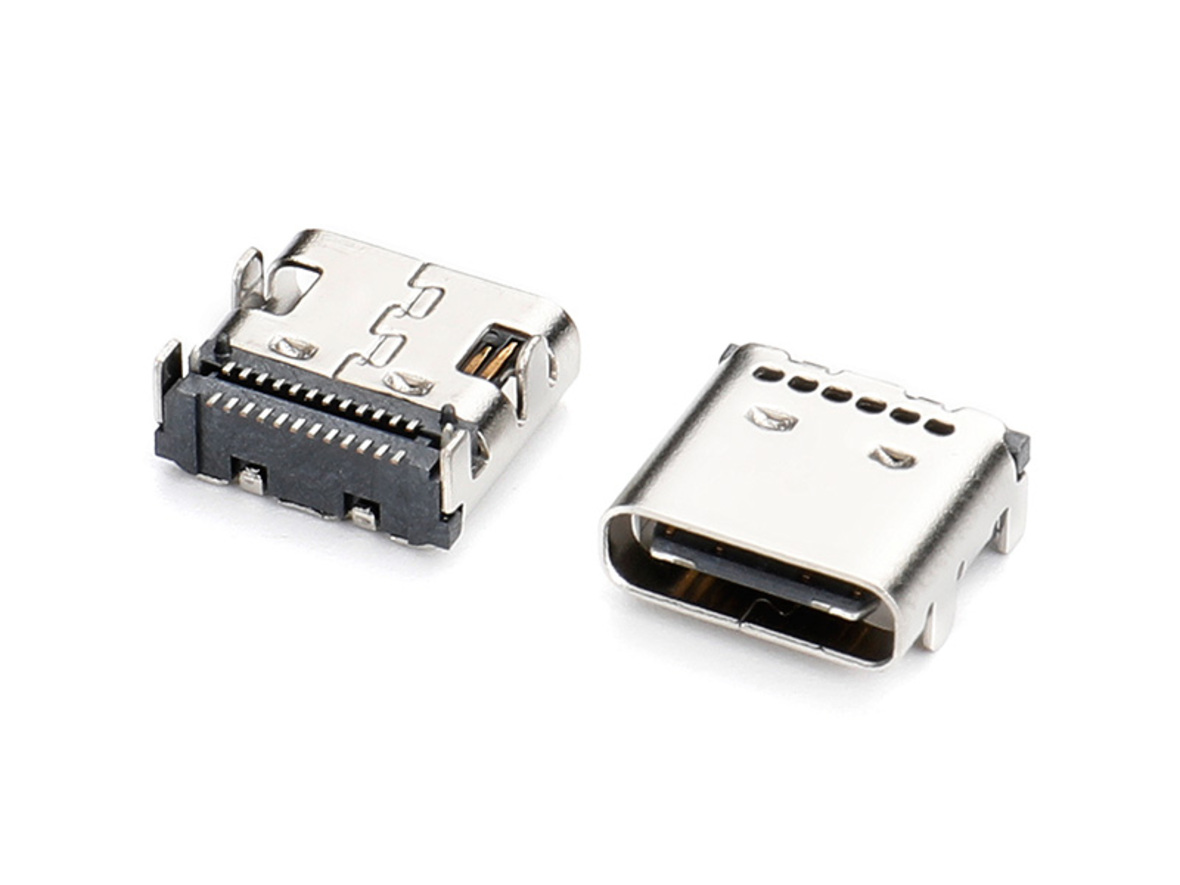

USB TYPE C双排SMT TYPE
电气参数
Electrical
Voltage: 20V AC
Current: 5A (MAX.)
Contact Resistance: 40mΩ; MAX. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ; MIN.
Operating Temperature : -40℃ ~ +85℃
Voltage: 20V AC
Current: 5A (MAX.)
Contact Resistance: 40mΩ; MAX. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ; MIN.
Operating Temperature : -40℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: Receptacle
Interface: R/A
PCB Mounting: SMT
Circuits: 24
High Speed Support: USB 3.1 Gen 1
Family: Receptacle
Interface: R/A
PCB Mounting: SMT
Circuits: 24
High Speed Support: USB 3.1 Gen 1
