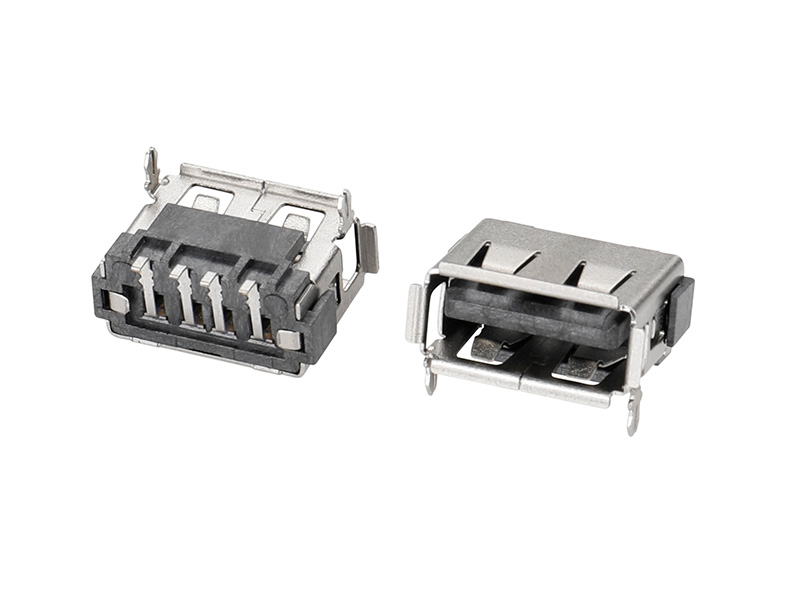

USB 2,0-AF短体前两脚插后贴黑胶卷边铁6,8
电气参数
Electrical
Rating: 30V AC
Current: 1.5A
Withstanding Voltage: 500V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -40°C ~ +85°C;
Rating: 30V AC
Current: 1.5A
Withstanding Voltage: 500V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -40°C ~ +85°C;
产品规格
Specification(Abbreviation)
Family: Type A
Interface: Single
PCB Mounting: SMT
Operation Direction: R/A
Family: Type A
Interface: Single
PCB Mounting: SMT
Operation Direction: R/A
