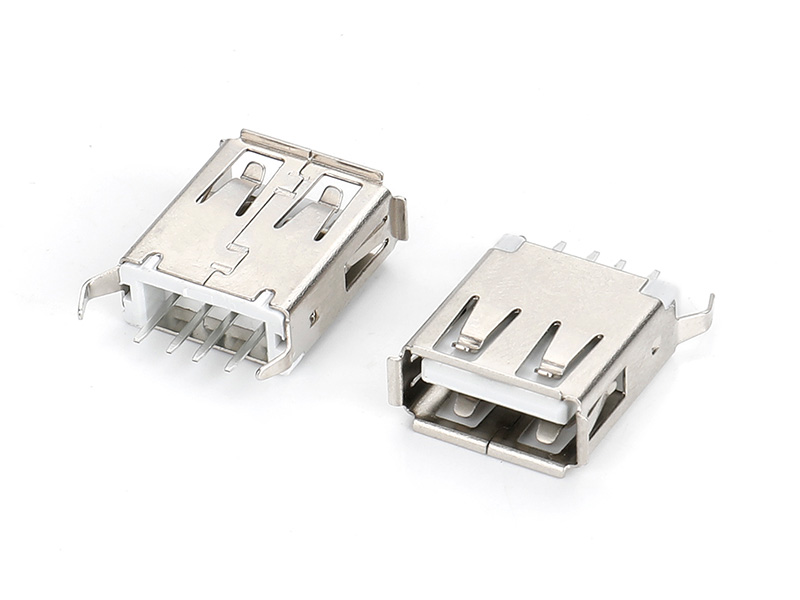

USB2.0 AF 180度插板式 磷铜端子半金GF 外壳镀亮镍 DIP 弯脚有卷边15.0MM
电气参数
Electrical
Rating: 30V AC
Current: 1.5A
Withstanding Voltage: 500V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -40°C ~ +85°C;
产品规格
Specification(Abbreviation)
Family: Type A
Interface: Single
PCB Mounting: T/H
Operation Direction: Vertica
Family: Type A
Interface: Single
PCB Mounting: T/H
Operation Direction: Vertica
