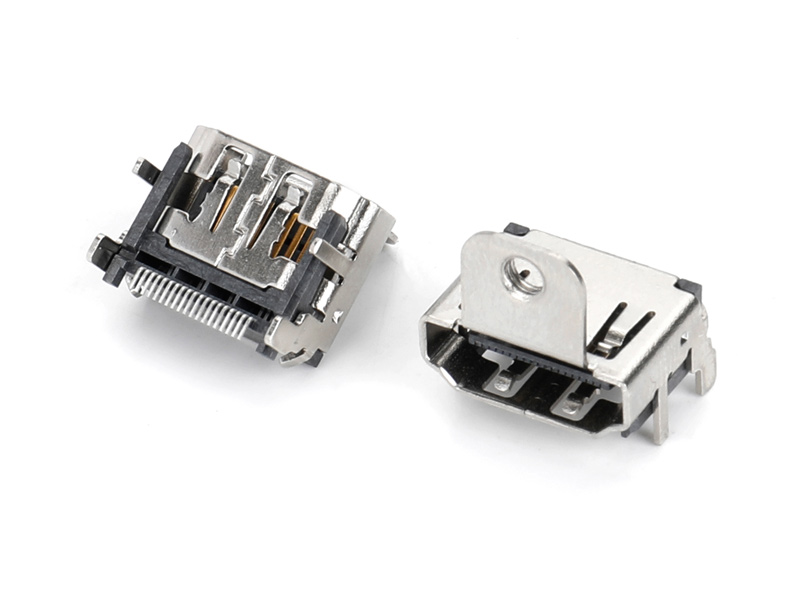

HDMI SMT MD式铜壳镀镍四直脚四反向弹片,螺孔高8.8，胶无柱 端子半金雾锡1u壳镀镍四直脚四反向弹片,螺孔高8.8，胶无柱 端子半金雾锡1u
电气参数
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: A type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A
Family: A type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A
