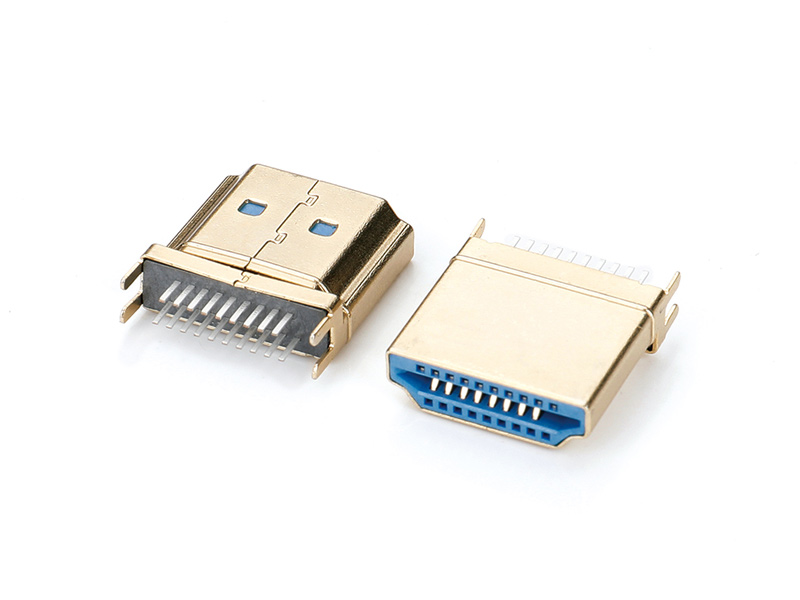

HDMI 公头，铁壳镀金
电气参数
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: A type
Interface: Standard
PCB Mounting: DIP
Operation Direction: Vertical
Family: A type
Interface: Standard
PCB Mounting: DIP
Operation Direction: Vertical
