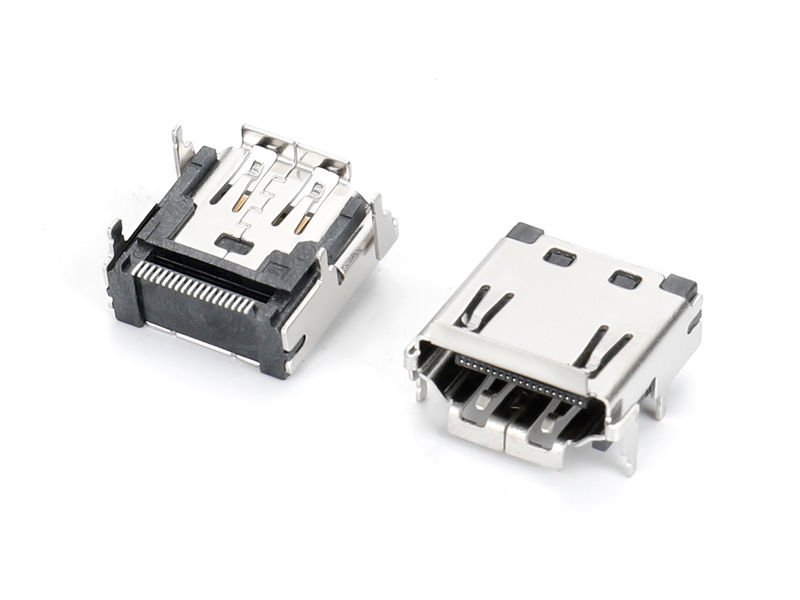

HDMI加长款B款不锈钢壳镀镍 四直脚四反弹片 翻边高9.35 针长1.4 半金雾锡15u
电气参数
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: B type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A
Family: B type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A
