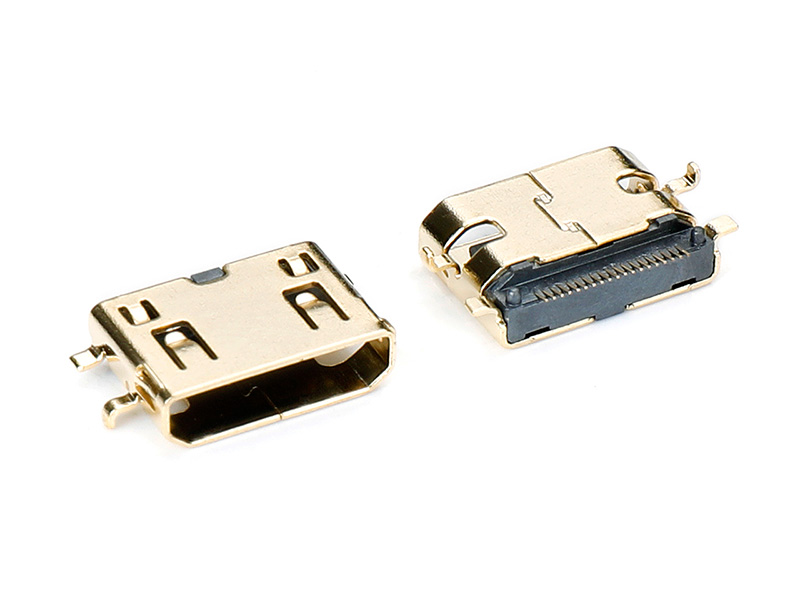

MINI HDMI TYPE
电气参数
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
产品规格
Specification(Abbreviation)
Family: C type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A
Family: C type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A
